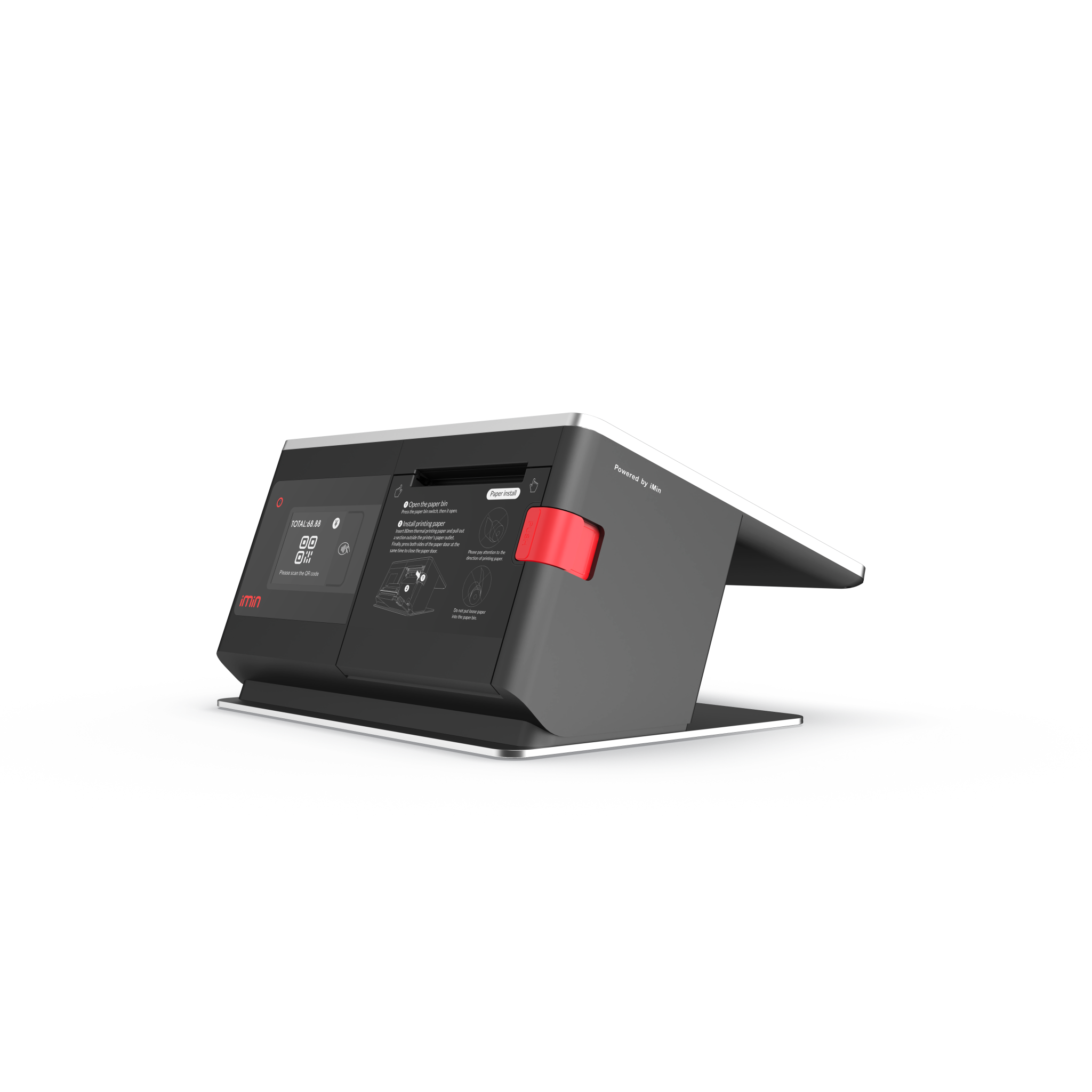

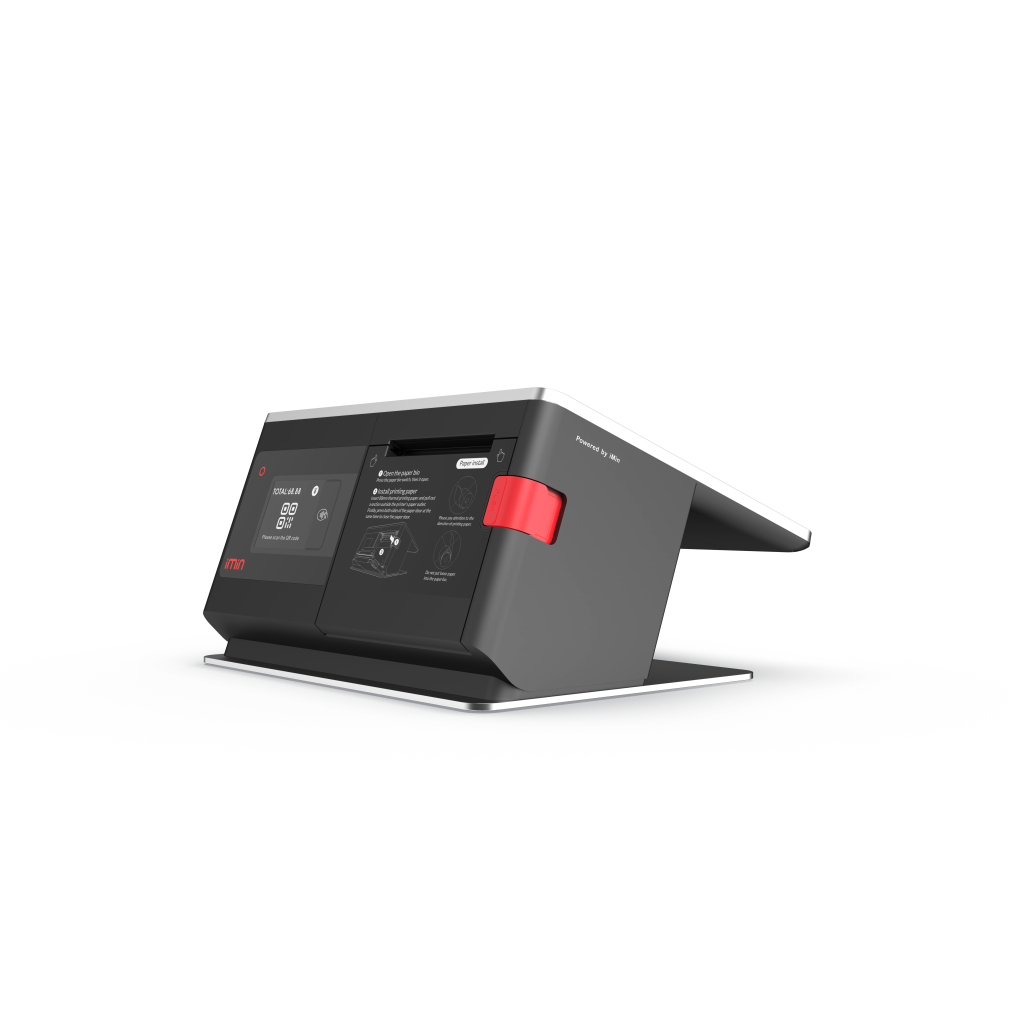

Imin Falcon - 10.1" Screen - Android 11 With Intergrated Printer

The iMin Falcon 1 is a feature-rich tablet POS device designed for retail, hospitality, and service industries. Its compact, modular design combines essential POS features into a sleek and powerful unit, making it an ideal all-in-one POS terminal.

1. Design & Display

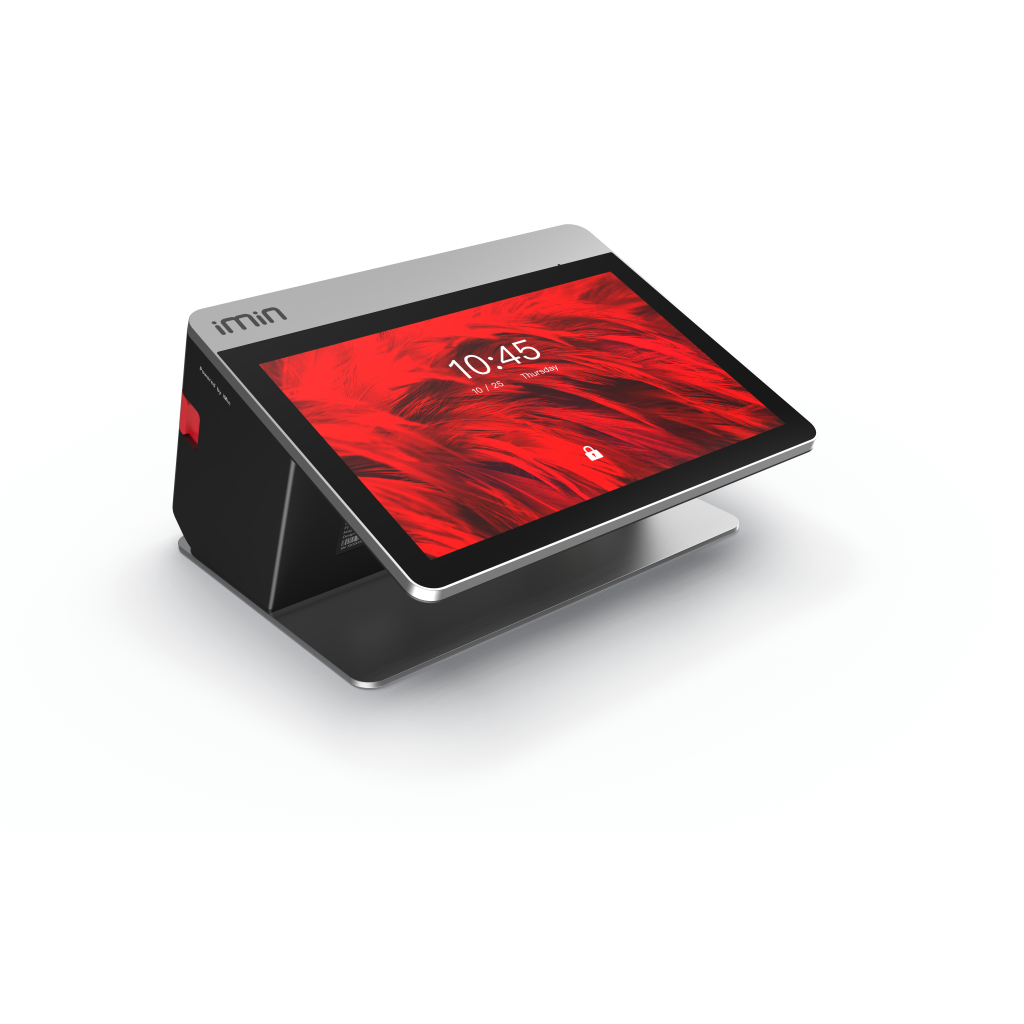

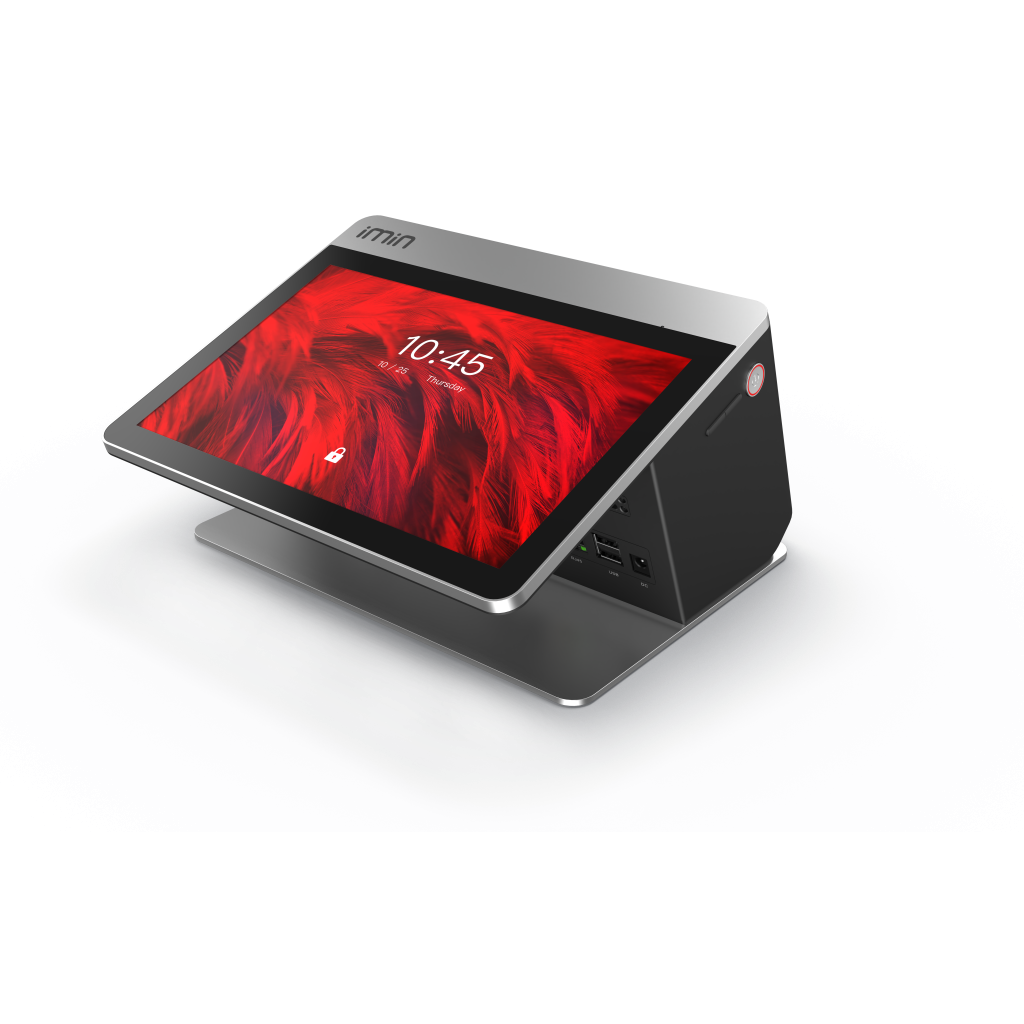

• Touchscreen: 10.1-inch IPS HD screen (1280x800 resolution) for vibrant colors and sharp details.
• Customer Display: A 2.4-inch LED screen for customer-facing interactions, improving transparency.
• Compact Form Factor: Space-saving design suitable for cashier counters, food service, and retail checkout stations.

2. Performance & Operating System

• Processor: Octa-core processor (2x Cortex-A75 + 6x Cortex-A55 @ 2.0GHz) for fast transactions.
• Memory: 3GB RAM + 32GB ROM, ensuring smooth operation and ample storage for POS applications.
• Operating System: Android 11 with iMin UI, providing a familiar interface and access to essential business applications.

3. Integrated Printer

• Printer Type: 80mm high-speed thermal printer with an auto cutter.
• Printing Speed: Up to 250mm/s, allowing for quick receipt printing.
• Paper Roll Size: 80mm x 80mm standard receipt rolls.
• Seiko Printhead Technology: Ensures clear and durable receipts.

4. Payment & Transaction Support

• NFC & SoftPOS: Supports contactless payments, including tap-to-pay using NFC-enabled cards and mobile wallets.
• Barcode Scanner: Built-in 0.3MP front camera with 1D/2D barcode scanning capabilities for QR code-based transactions.

5. Connectivity & Expansion

• Wi-Fi: Dual-band 2.4GHz & 5GHz for stable and fast internet connectivity.
• Bluetooth: Version 5.0 for quick pairing with peripherals like barcode scanners, printers, and customer displays.
• Ethernet: RJ45 LAN port for businesses that require wired connections.
• Cellular Support: 2G/3G/4G LTE compatible, allowing mobile POS operations in remote or outdoor locations.
• GPS: Built-in GPS tracking for businesses that require location-based services.

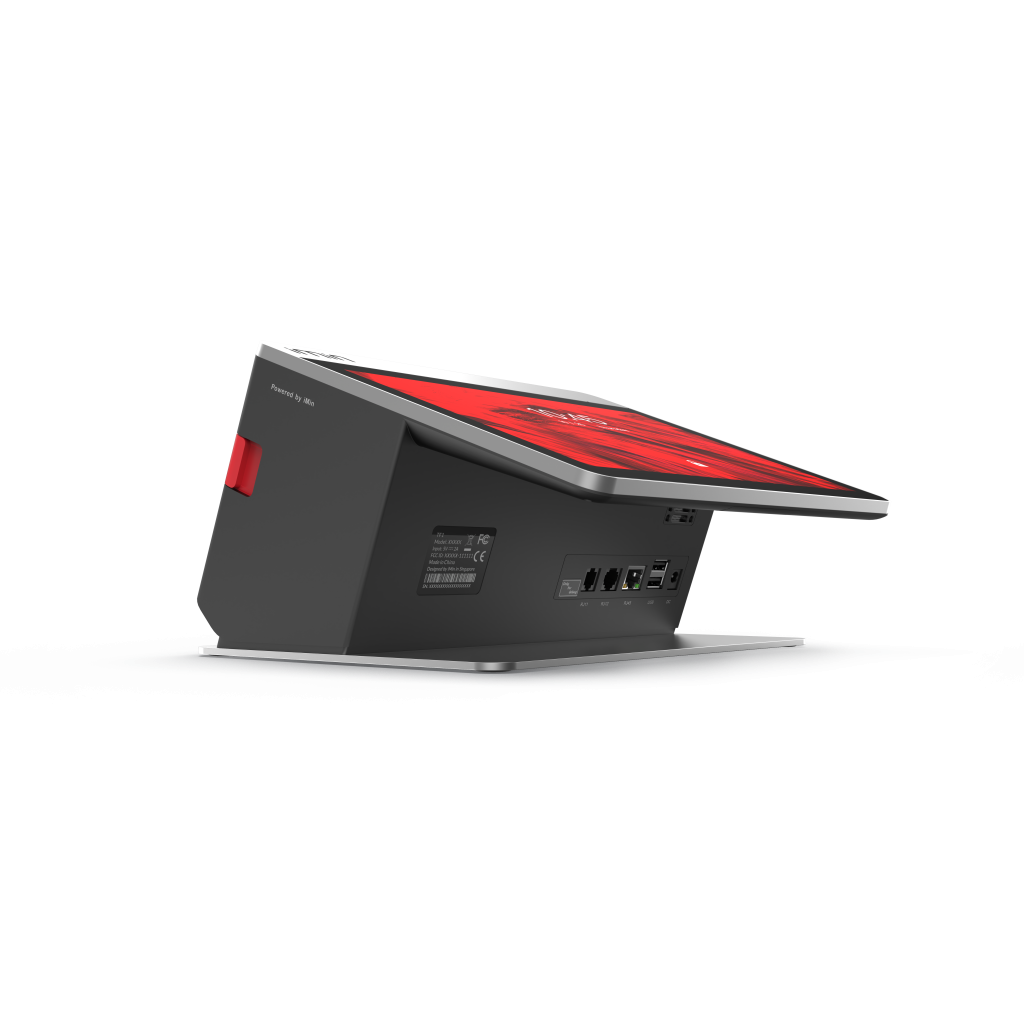

6. Ports & Peripheral Integration

• 2 x USB Type-A – Connect barcode scanners, cash drawers, and keyboards.
• 1 x DC Jack – Power input.
• 1 x Nano SIM slot – Supports mobile network connectivity.
• 1 x PSAM slot – Secure authentication for card transactions.
• 1 x TF Card slot – Expandable storage (supports up to 128GB).
• 1 x RJ11 – Connect to cash drawers.
• 1 x RJ12 – Connect additional peripherals.
• 1 x RJ45 – Wired Ethernet connectivity.
• 1 x 3.5mm Audio Jack – Connect headphones or speakers.

7. Battery & Power Management

• Portable Power Option: Compatible with power banks, allowing mobile business operations.
• Power Efficiency: Optimized for low power consumption, ensuring long-lasting performance.

8. Business Use Cases

The iMin Falcon 1 is designed to cater to various business sectors:

• Retail: A fast and efficient checkout system for supermarkets, fashion stores, and kiosks.
• Restaurants & Cafés: Ideal for order processing, kitchen display systems, and self-service kiosks.
• Hospitality & Events: Perfect for ticketing, reservations, and customer service points.
• Warehouses & Logistics: Helps in inventory management and real-time tracking.
• Field Services & Mobile POS: Ideal for trade shows, food trucks, and on-the-go sales.

9. Advantages of iMin Falcon 1

✅ All-in-One POS Solution – Combines a tablet, printer, NFC payment, and scanner into one device.
✅ Compact & Space-Saving – Minimal footprint ideal for tight cashier spaces.
✅ Fast & Reliable Performance – Octa-core CPU + 3GB RAM ensures smooth multitasking.
✅ Seamless Connectivity – Supports Wi-Fi, Bluetooth, 4G LTE, and Ethernet.
✅ Secure Transactions – Supports NFC-based payments and barcode scanning for fast checkouts.
✅ Multiple Peripheral Options – Easily connects to printers, cash drawers, barcode scanners, and customer displays.
✅ Android 11 Support – Future-ready system with regular updates and app compatibility.

Final Thoughts

The iMin Falcon 1 is a powerful, flexible, and scalable POS system, perfect for small and medium-sized businesseslooking for an efficient and affordable all-in-one solution. Its high-speed printer, contactless payment options, and strong connectivity make it a versatile tool for modern businesses.
