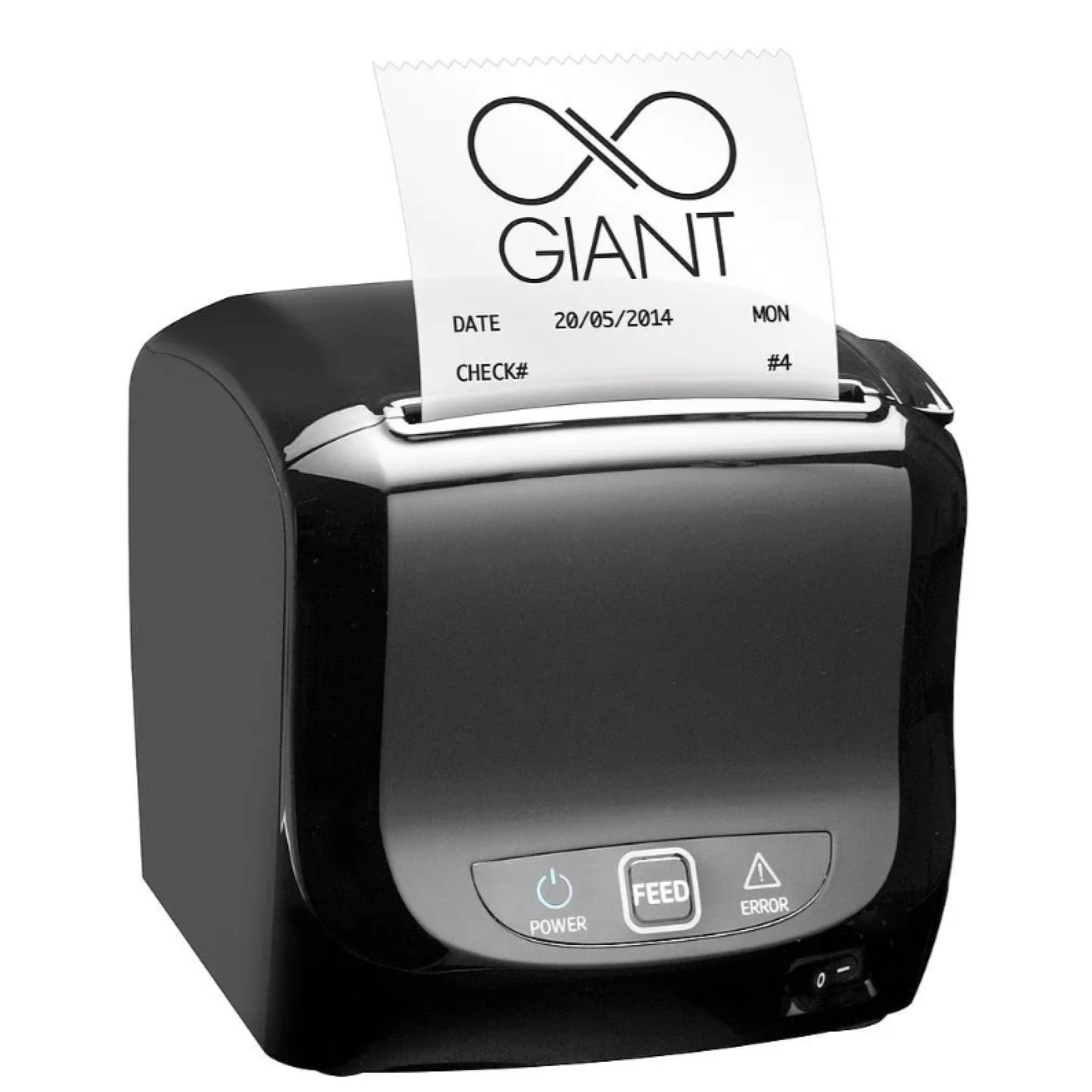

SAM4S GIANT-100DBD BLACK PRINTER

SAM4S GIANT 100 is the new 3″ thermal receipt printer. Distinctive in its very small size, the GIANT-100 is as small or smaller than 2″ Printers. Nevertheless it performs equal to or better than competing 3″printers. GIANT-100 is a signpost model, pointing the direction to which receipt printers will evolve in the future.

Features:

• Standard with USB, Serial and Ethernet with WiFi Option.
• Triple Interface Serial, USB and Ethernet as Standard.
• High Print Speed at 220mm/Second.
• Up to 80mm Wide Receipt.
• Support a Variety of Barcodes Including QR Codes.
• Wall Mount Option with Display Pivot.
• Low Power Consumption & Paper Saving.
• Tool Free Cabinet for Easy Assembly & Disassembly.
• Optional Kitchen Bell Feature.
• Stores/Prints User Defined Graphic Logos, Coupons or Advertising Messages.
• Energy Star Certified Superior Efficiency Reduces Energy Costs and Carbon Footprint.

Specifications:

• MODEL NAME: GIANT-100
• Printing Method: Thermal Line Printing
• Resolution: 180 DPI

Printing Speed

• Mono Paper 80mm: Max. 250 mm/sec (59 Lines/sec)
• Mono Paper 58mm: 150 mm/sec
• Two Color Paper: 100 mm/sec

Paper

• Loading: Drop-In Type
• Width: Max. 80.0mm / 58.0mm
• Diameter: Max. ?? 83.0 mm
• Mechanism (MCBF): 70,000,000 Line

Reliability

• TPH: 1 x 10^8 Pulses / 150Km
• Auto Cutter: 1,500,000 Cut

DrawerPort

• 2 ports (+24V)

Barcode

• UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Code 128, ITF, CODABAR, PDF417, QRCode

Driver

• WEPOS, POSReady2009, Windows XP Pro, Windows Vist, Windows 7 Pro, POSReady 7, Windows 8 Pro, Industry 8, OPOS, JPOS, Linux Cups, Max(OSX10.8), Android SDK

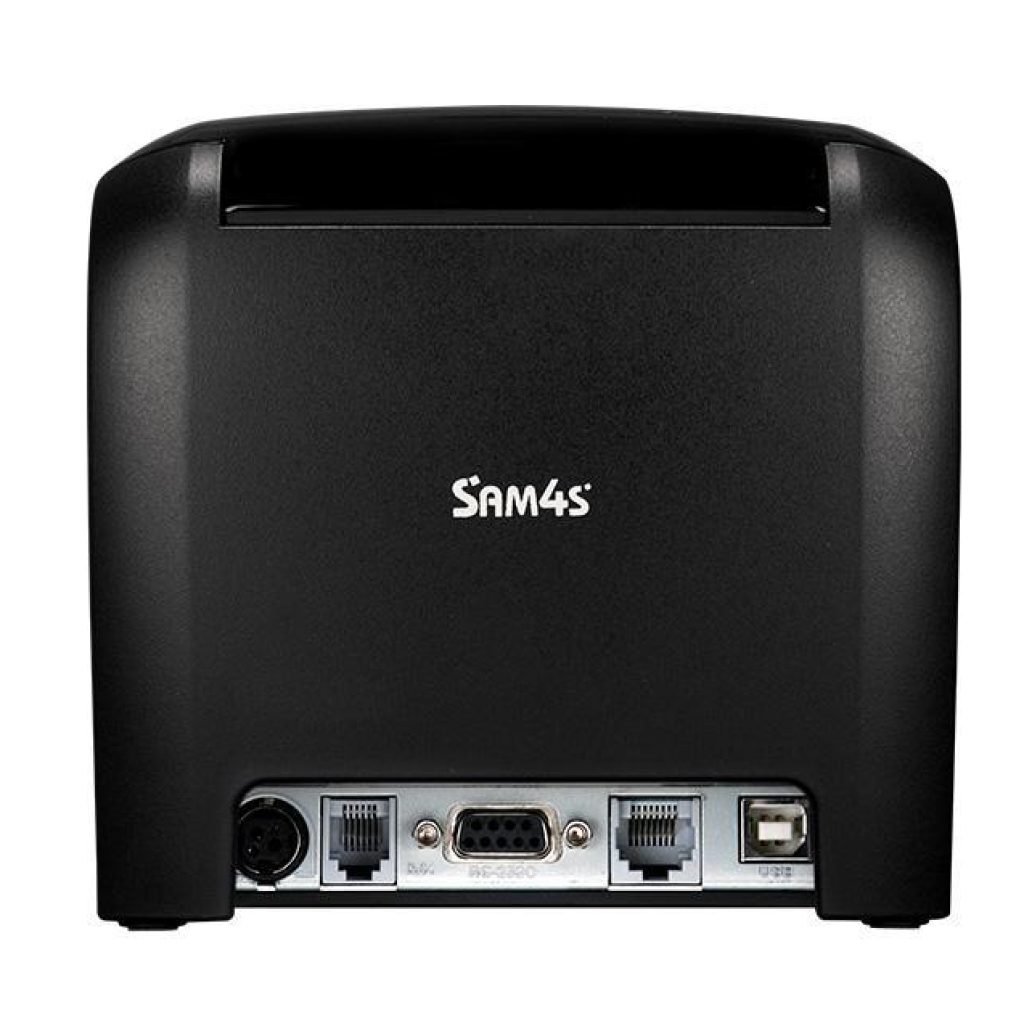

Interface

• USB + Serial(25Pin), USB + Serial(9Pin), USB + WiFi, USB + Serial+Ethernet 3-Combo

Dimensions (with foot rubber)

• 131(W) x 155(D) x 133(H) mm

Weight (Net)

• 0.9kg

Colour

• Black / White

Emulation

• Epson, Star

Option

•  Loading: No
• Paper Near End Sensor: Yes
• Kitchen Bell: Yes
• Wall Mount Kit: Yes
• Splash Cover: Yes
• Paper Separator: (58mm) Default
